SKU: TNJ44122-FYG-S-EAMPN: J44122.SM
$119.80
Each

Garment Primary Color

For current coupons - check home page
remove
add

Product Details

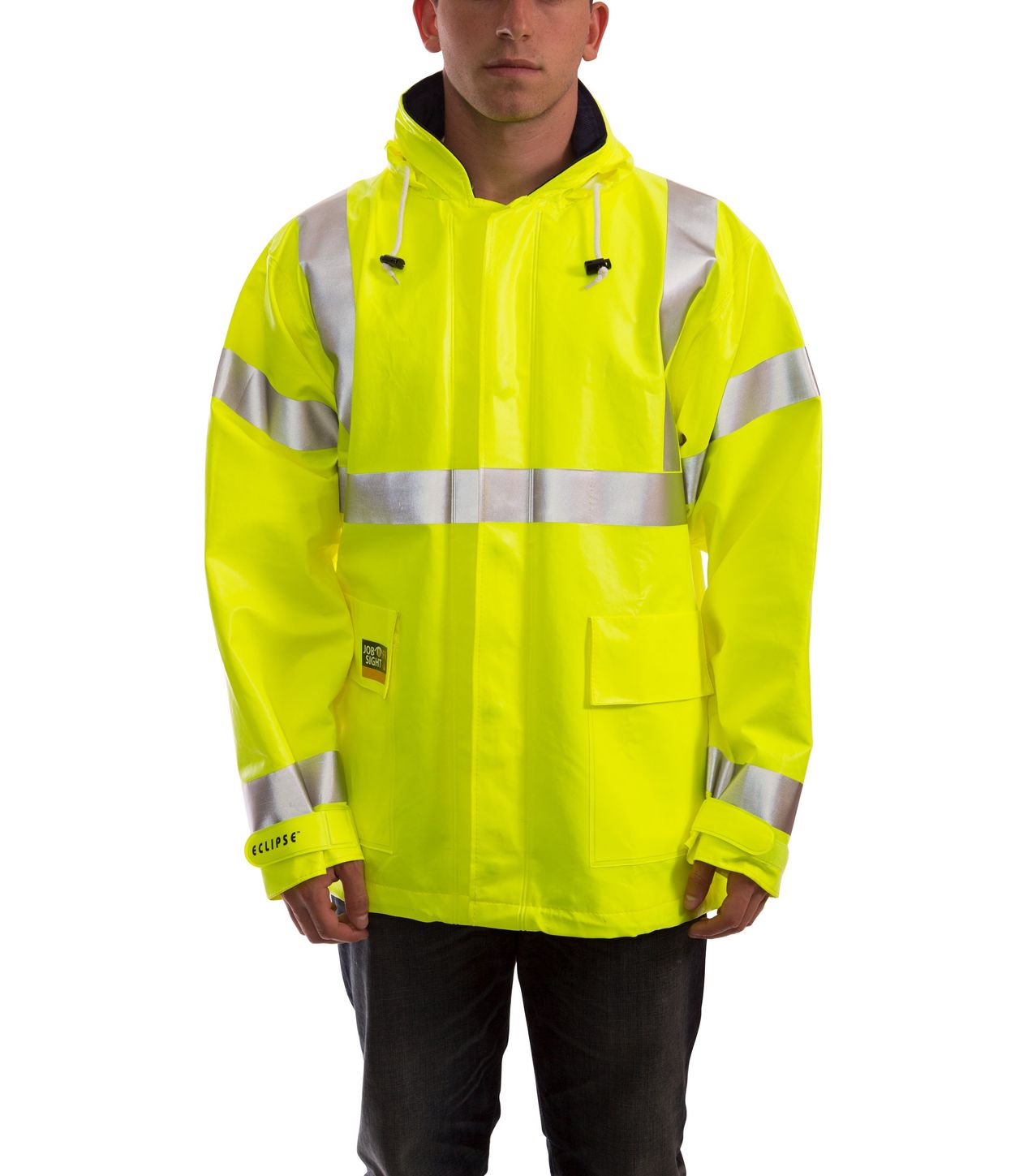

Designed for utility workers, the Eclipse™ Hi-Viz Arc flash, Fire and Liquid resistant rain jacket from Tingley features a Patent Pending Thermo-Grid™ technology which helps to block out heat energy while the flame resistant PVC coating on Nomex® provides 100% liquid proof protection in a soft, lightweight package. This construction also provides excellent chemical protection. The garment is Class 3 high visibility and is compliant with ANSI/ISEA Class 3 standards, featuring 2” reflective tape trim and fluorescent background colors, for top-notch night and day visibility, respectively. Besides offering great protection, this jacket is also geared toward great comfort. The full cut shoulders allow for increased freedom of movement, and the full-vented cape back increases air circulation. Providing 100% waterproof protection, this jacket with an attached hood in the collar is geared towards keeping the wearer safe and comfortable in a variety of conditions. ASTM F1891, NFPA 70E - HRC 2, and ASTM F2733 compliant.

NASCO offers a similar product, the ArcLite 1503J HiVis rain jacket with attached hood. This PVC/Nomex® garment provides arc flash and fire resistance.

Tingley Eclipse™ Arc Flash and Fire Resistant Rain Jacket has the following features:

  • Nomex® lining offers flame and heat resistance for top-notch protection and wearability
  • Garment meets ASTM F1891 standards for Arc Thermal Performance
  • Compliant with ANSI/ISEA 107 Class 3, NFPA 70E - HRC 2, and ASTM F1891 standards
  • Garment features 2” reflective tape trim for reflecting light, allowing for 360° nighttime wearer noticeability
  • Background colors of garment are highly fluorescent for top-notch daytime visibility
  • Overhead shoulder design for superior freedom of movement
  • Patent Pending Thermo-Grid™ technology provides for superior heat energy barrier
  • Flame resistant PVC coating on Nomex® delivers superior liquid protection
  • Combination of zipper, snap and storm fly front keeps out elements and contaminants
  • Full flame resistant corduroy collar with roll-away hood construction
  • 100% waterproof protection with Therm-O-Rad sealed seams
  • Improved fit, oversized three piece hood has adjustable hook and loop take-up strap
  • Full-vented cape back allows for better air circulation
  • D-ring access for fall protection harness
  • Hardware used is non-conductive and non-corrosive for best safety
  • Mildew resistant for extended service life
  • Chemical resistance: Many acids, oils, alcohols, salts, and alkalies

Tingley Eclipse™ arc flash and fire resistant rain jacket with attached hood variations:

  • Tingley J44122 comes in Fluorescent Yellow-Green, with an arc flash rating of 8.7 cal/cm²
  • Tingley J44129 comes in Fluorescent Orange-Red, with an arc flash rating of 11 cal/cm²

NASCO offers a similar product, the PVC/Nomex® ArcLite 1503J HiVis rain jacket with attached hood, which offers arc flash and fire resistant protection.

Specifications

SKUTNJ44122-FYG-S-EATNJ44129-FOR-S-EATNJ44122-FYG-M-EATNJ44129-FOR-M-EATNJ44122-FYG-L-EATNJ44129-FOR-L-EATNJ44122-FYG-XL-EATNJ44129-FOR-XL-EATNJ44122-FYG-2XL-EATNJ44129-FOR-2XL-EATNJ44122-FYG-3XL-EATNJ44129-FOR-3XL-EATNJ44122-FYG-4XL-EATNJ44129-FOR-4XL-EATNJ44122-FYG-5XL-EATNJ44129-FOR-5XL-EA
MPNJ44122.SMJ44129.SMJ44122.MDJ44129.MDJ44122.LGJ44129.LGJ44122.XLJ44129.XLJ44122.2XJ44129.2XJ44122.3XJ44129.3XJ44122.4XJ44129.4XJ44122.5XJ44129.5X
Coat SizeSSMMLLXLXL2XL2XL3XL3XL4XL4XL5XL5XL
Garment Primary ColorFluorescent Yellow-GreenFluorescent Orange-RedFluorescent Yellow-GreenFluorescent Orange-RedFluorescent Yellow-GreenFluorescent Orange-RedFluorescent Yellow-GreenFluorescent Orange-RedFluorescent Yellow-GreenFluorescent Orange-RedFluorescent Yellow-GreenFluorescent Orange-RedFluorescent Yellow-GreenFluorescent Orange-RedFluorescent Yellow-GreenFluorescent Orange-Red
Arc flash ratingATPV 8.7 cal/cm2ATPV 8.7 cal/cm2ATPV 8.7 cal/cm2ATPV 8.7 cal/cm2ATPV 8.7 cal/cm2ATPV 8.7 cal/cm2ATPV 8.7 cal/cm2ATPV 8.7 cal/cm2ATPV 8.7 cal/cm2ATPV 8.7 cal/cm2ATPV 8.7 cal/cm2ATPV 8.7 cal/cm2ATPV 8.7 cal/cm2ATPV 8.7 cal/cm2ATPV 8.7 cal/cm2ATPV 8.7 cal/cm2
Coat lengthHipHipHipHipHipHipHipHipHipHipHipHipHipHipHipHip
High VisibilityANSI Class 3ANSI Class 3ANSI Class 3ANSI Class 3ANSI Class 3ANSI Class 3ANSI Class 3ANSI Class 3ANSI Class 3ANSI Class 3ANSI Class 3ANSI Class 3ANSI Class 3ANSI Class 3ANSI Class 3ANSI Class 3
StyleUnisexUnisexUnisexUnisexUnisexUnisexUnisexUnisexUnisexUnisexUnisexUnisexUnisexUnisexUnisexUnisex
