Tingley Eclipse™ Arc Flash and Fire Resistant Rain Coat - PVC on Nomex®, Chemical Resistant, Class 3 Hi Vis






Product Details
Designed for utility workers, the Eclipse™ Hi-Viz Arc flash, Fire and Liquid resistant rain coat from Tingley features a Patent Pending Thermo-Grid™ technology which helps to block out heat energy while the flame resistant PVC coating on Nomex® provides 100% liquid proof protection in a soft, lightweight package. This construction also provides excellent chemical protection. The garment is Class 3 high visibility and is compliant with ANSI/ISEA Class 3 standards, featuring 2” reflective tape trim and fluorescent background colors, for top-notch night and day visibility, respectively. Besides offering great protection, this jacket is also geared toward great comfort. The full cut shoulders allow for increased freedom of movement, and the full-vented cape back increases air circulation. Providing 100% waterproof protection, this coat with an attached hood in the collar is geared towards keeping the wearer safe and comfortable in a variety of conditions. ASTM F1891, NFPA 70E - HRC 2, and ASTM F2733 compliant.
Tingley Eclipse™ Arc Flash and Fire Resistant Rain Coat has the following features:
- Nomex® lining offers flame and heat resistance for top-notch protection and wearability
- Garment meets ASTM F1891 standards for Arc Thermal Performance
- Compliant with ANSI/ISEA 107 Class 3, NFPA 70E - HRC 2, and ASTM F1891 standards
- Garment features 2” reflective tape trim for reflecting light, allowing for 360° nighttime wearer noticeability
- Background colors of garment are highly fluorescent for top-notch daytime visibility
- Overhead shoulder design for superior freedom of movement
- Patent Pending Thermo-Grid™ technology provides for superior heat energy barrier
- Flame resistant PVC coating on Nomex® delivers superior liquid protection
- Combination of zipper, snap and storm fly front keeps out elements and contaminants
- Full flame resistant corduroy collar with roll-away hood construction
- 100% waterproof protection with Therm-O-Rad sealed seams

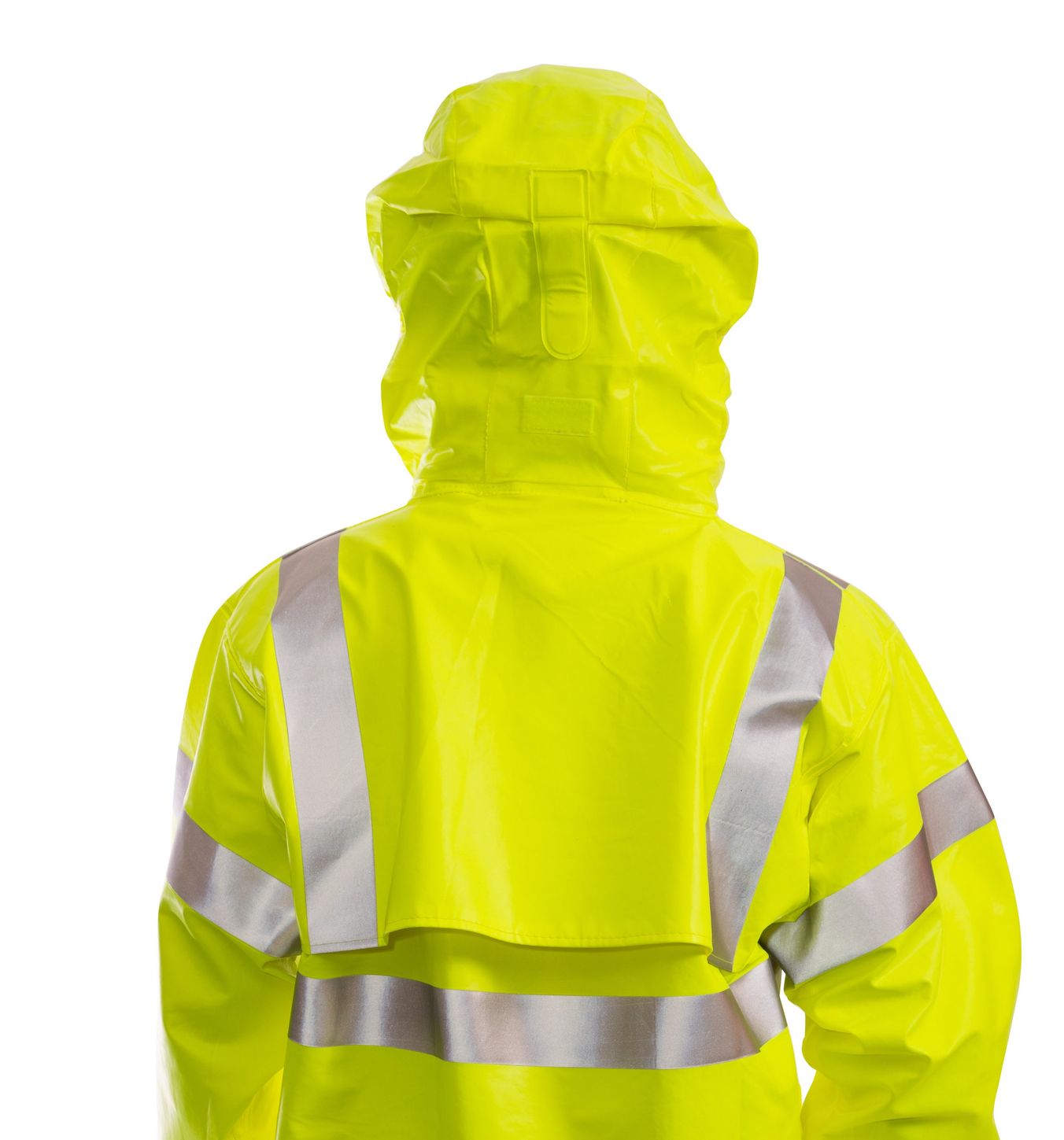

- Improved fit, oversized three piece hood has adjustable hook and loop take-up strap
- 2 front cargo pockets with flap, and hook and loop closures
- Full-vented cape back allows for better air circulation
- D-ring access for fall protection harness
- Hardware used is non-conductive and non-corrosive for best safety
- Mildew resistant for extended service life
- Chemical resistance: Many acids, oils, alcohols, salts, and alkalies
Tingley Eclipse™ arc flash and fire resistant rain jacket with attached hood variations:
- Tingley J44122 comes in Fluorescent Yellow-Green, with an arc flash rating of 8.7 cal/cm²
- Tingley J44129 comes in Fluorescent Orange-Red, with an arc flash rating of 11 cal/cm²
Specifications
SKU | TNC44122-FYG-S-EA | TNC44129-FOR-S-EA | TNC44122-FYG-M-EA | TNC44129-FOR-M-EA | TNC44122-FYG-L-EA | TNC44129-FOR-L-EA | TNC44122-FYG-XL-EA | TNC44129-FOR-XL-EA | TNC44122-FYG-2XL-EA | TNC44129-FOR-2XL-EA | TNC44122-FYG-3XL-EA | TNC44129-FOR-3XL-EA | TNC44122-FYG-4XL-EA | TNC44129-FOR-4XL-EA |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MPN | C44122.SM | C44129.SM | C44122.MD | C44129.MD | C44122.LG | C44129.LG | C44122.XL | C44129.XL | C44122.2X | C44129.2X | C44122.3X | C44129.3X | C44122.4X | C44129.4X |
Coat Size | S | S | M | M | L | L | XL | XL | 2XL | 2XL | 3XL | 3XL | 4XL | 4XL |
Garment Primary Color | Fluorescent Yellow-Green | Fluorescent Orange-Red | Fluorescent Yellow-Green | Fluorescent Orange-Red | Fluorescent Yellow-Green | Fluorescent Orange-Red | Fluorescent Yellow-Green | Fluorescent Orange-Red | Fluorescent Yellow-Green | Fluorescent Orange-Red | Fluorescent Yellow-Green | Fluorescent Orange-Red | Fluorescent Yellow-Green | Fluorescent Orange-Red |
Arc flash rating | ATPV 8.7 cal/cm2 | ATPV 8.7 cal/cm2 | ATPV 8.7 cal/cm2 | ATPV 8.7 cal/cm2 | ATPV 8.7 cal/cm2 | ATPV 8.7 cal/cm2 | ATPV 8.7 cal/cm2 | ATPV 8.7 cal/cm2 | ATPV 8.7 cal/cm2 | ATPV 8.7 cal/cm2 | ATPV 8.7 cal/cm2 | ATPV 8.7 cal/cm2 | ATPV 8.7 cal/cm2 | ATPV 8.7 cal/cm2 |
Coat length | Knee | Knee | Knee | Knee | Knee | Knee | Knee | Knee | Knee | Knee | Knee | Knee | Knee | Knee |
High Visibility | ANSI Class 3 | ANSI Class 3 | ANSI Class 3 | ANSI Class 3 | ANSI Class 3 | ANSI Class 3 | ANSI Class 3 | ANSI Class 3 | ANSI Class 3 | ANSI Class 3 | ANSI Class 3 | ANSI Class 3 | ANSI Class 3 | ANSI Class 3 |
Style | Unisex | Unisex | Unisex | Unisex | Unisex | Unisex | Unisex | Unisex | Unisex | Unisex | Unisex | Unisex | Unisex | Unisex |
