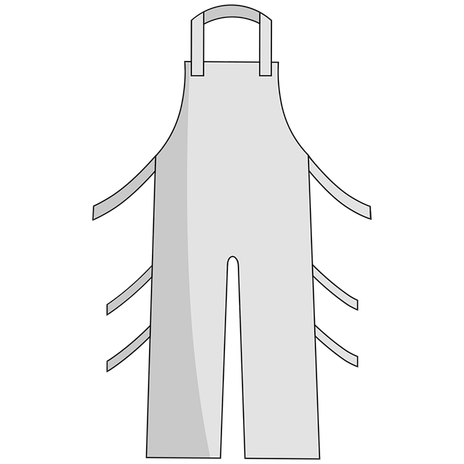

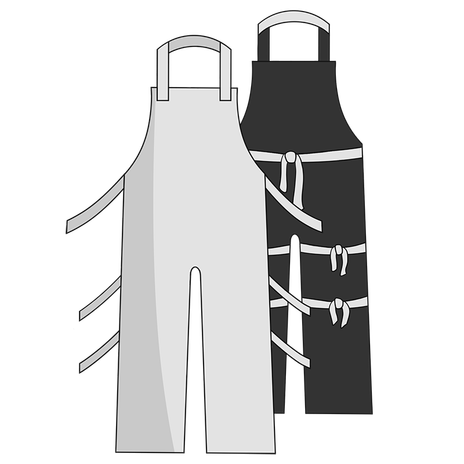

Otterlayer’s heat resistant split leg apron model A52-ATX is a convenient and inexpensive solution for high heat protection needs. With a simple design, consisting of a piece of specialty fabric with securely stitched edges, a neck loop and ties at sides for securing around back as well as strings to tie around each leg in two places, these heat resistant aprons provide reliable protection from radiant and contact heat at a low cost.
Features of Otterlayer split leg foundry and aluminized aprons:
- Edges stitched for additional tear resistance
- Ties at top around neck, at sides around back, and in two places around each leg for a secure fit without loose edges
Aluminized Trutex™ is a non-woven fabric with a para-aramid batting, OPF batting, and meta-aramid scrim which is coated with aluminum on one side. It is constructed using the time tested technique of adhering pure aluminum to both sides of a thin polyester film and adding it to a flame resistant textile substrate.
The base fabric is essentially a carbon para aramid blend which makes it very strong and tear-resistant. It has the characteristic pea green and black speckled appearance, yet has a soft, fleece-like texture.
Aluminized Trutex™ is a great choice for molten metal splash and radiant heat protection. It is relatively light and flexible, and garments made from it will be more comfortable to wear.
Protective properties of aluminized Trutex™ clothing material:
- Lightweight, soft and flexible
- Protects against both molten iron and aluminum splash
- Very good thermal protection - withstands up to 400-600°F contact heat
- Excellent radiant reflectivity
- Radiant heat resistance - up to 2000°F
Fabric composition and characteristics:
- Non-woven, para-aramid and OPF batting, meta-aramid scrim with aluminized layer
- Fabric Weight: 10 oz. / sq. yd.
|Max contact heat||High (500F to 800F)|
|Abrasion and tear resistance||Medium|
|Radiant heat protection||Yes|
|Molten aluminum splash||Resistant|
|Molten iron splash||Resistant|
Otterlayer aluminized apron, TruteX, 36", split leg, A22-ATX$83.00Each
Otterlayer aluminized apron, TruteX, 39", split leg, A32-ATX$90.50Each
Otterlayer aluminized apron, carbon fleece, 48", split leg, A52-ACF$108.40Each
Otterlayer aluminized apron, para aramid + carbon, 48", split leg, A52-APC$92.30Each
Otterlayer aluminized apron, CarbonX, 48", split leg, A52-AX1$113.00Each
Otterlayer aluminized apron, para aramid + PBI, 48", split leg, A52-APB$110.80Each
Otterlayer aluminized apron, rayon, 48", split leg, A52-AR1$65.30Each
Otterlayer aluminized apron, TruteX, 48", bib, A51-ATX$91.50Each
Otterlayer aluminized apron, heavy-duty rayon, 48", split leg, A52-AR2$73.50Each
Otterlayer aluminized apron, TruteX, 39", bib, A31-ATX$74.50Each
Otterlayer aluminized apron, TruteX, 30", bib, A11-ATX$63.40Each
Otterlayer aluminized apron, TruteX, 36", bib, A21-ATX$69.70Each
